With our Terraform for AWS integration, you can collect evidence of your AWS configurations directly from your cloud infrastructure. Terraform integrations are a flexible, low-code solution that allows you to customize what evidence is collected from your cloud systems. Read more about our Terraform integrations.

There are a lot of different types of evidence that you can collect from AWS. The flexibility of this integration is limited only by what is available from Terraform in terms of data sources supported by their AWS provider. Important note: You do not need to use Terraform in your tech stack in order to use this integration for AWS to collect evidence.

Here is a non-exhaustive short list of some of the possible evidence you may collect from Terraform for AWS:

Follow the instructions on this page to get started collecting evidence from AWS using Terraform.

To configure the Terraform integration with AWS, you (or someone in your organization) will need access and permissions to configure new AWS IAM roles and policies.

Get started by navigating to the Integration Manager in Strike Graph and opening the Terraform for AWS integration. Note: if you do not see this integration listed, it may not be available for your organization or role.

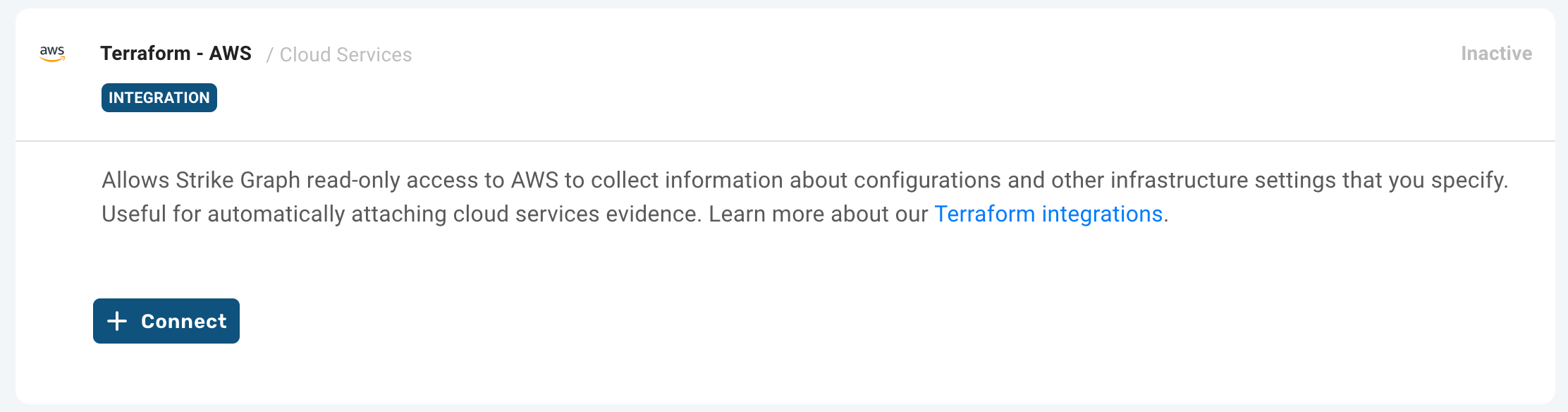

Click on the “+ Connect” button to begin configuring a new integration.

Next, in your AWS Console, configure a new read-only role and policy within your AWS account that Strike Graph can use to collect evidence from your AWS systems.

Some quick definitions:

To configure the Terraform for AWS integration, you will need to define an IAM Role and Policy.

Set up a new policy and role in your AWS management console with the following IDs. The policy should provide read-only access to the resources you want to use in Strike Graph.

You will need two pieces of information to set up the AWS Role and Trust Policy.

Both of these variables can be grabbed from the Integrations Manager component.

Create the Role in AWS

In your AWS console:

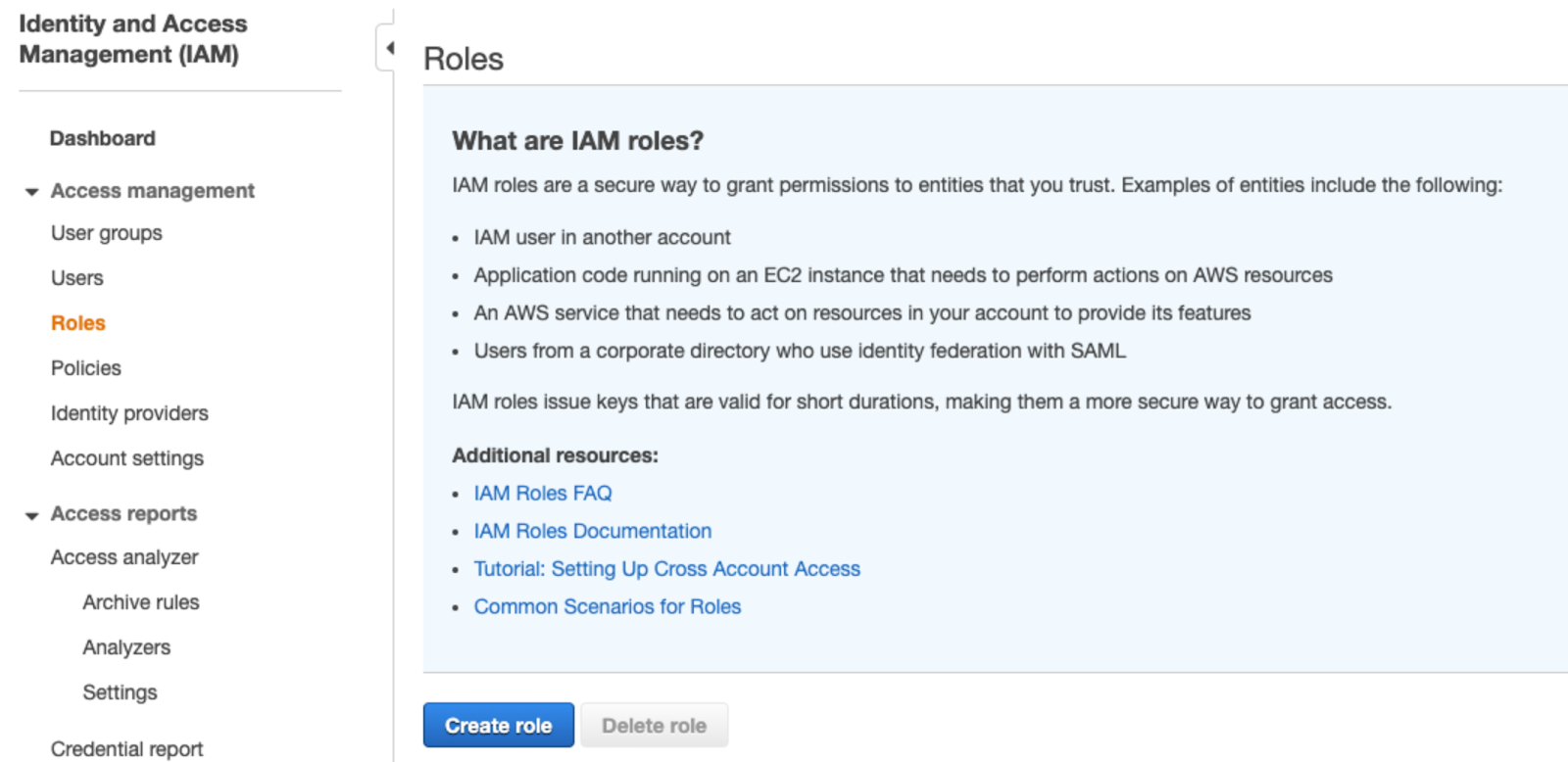

Navigate to Services → IAM → Roles and then find and click on the "Create role" button.

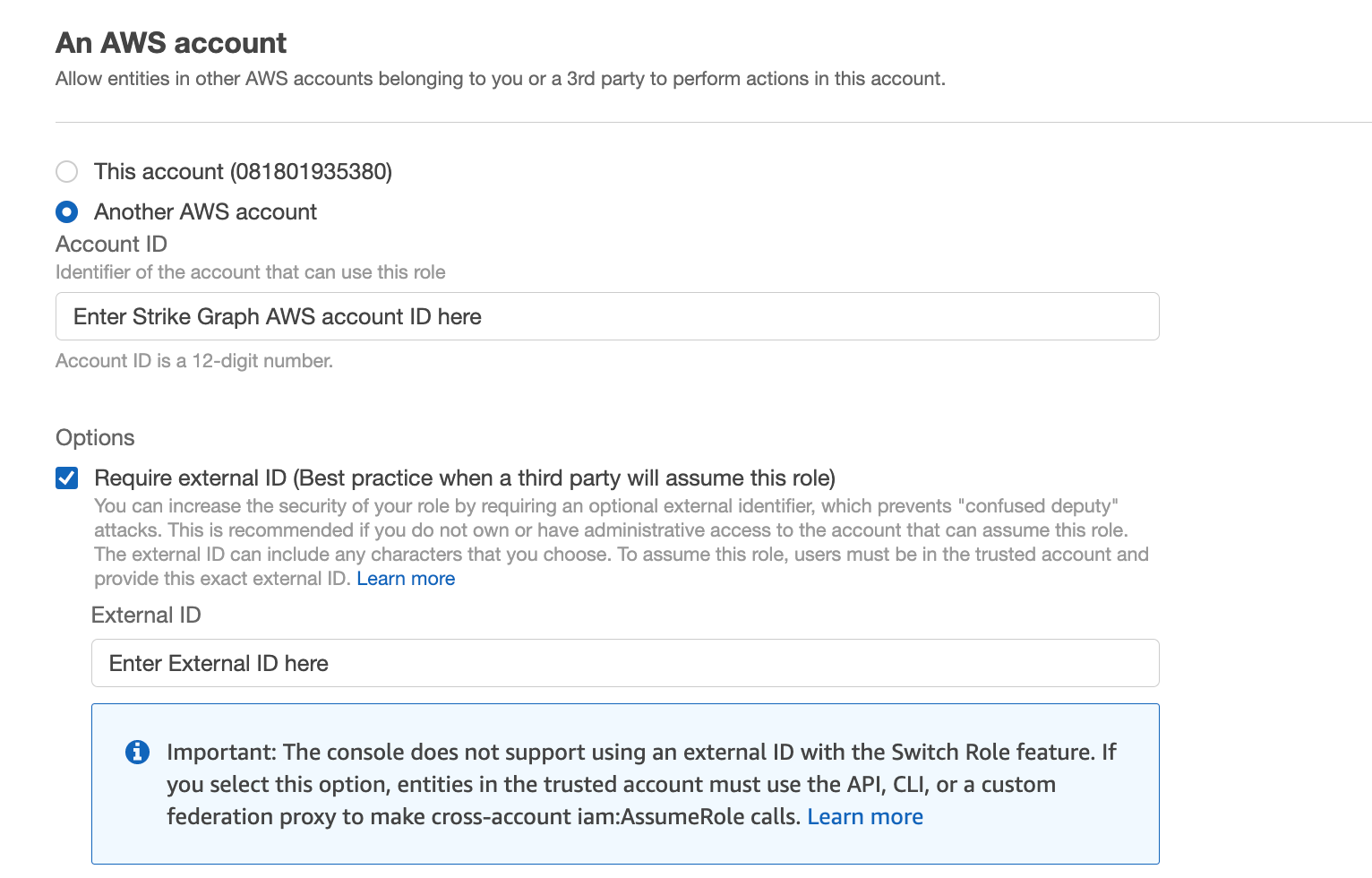

Under "Trusted entity type" select "AWS account" and then “Another AWS account” and then enter the Strike Graph AWS account ID (from Integrations Manager) under "Account ID".

On the same screen, select the “Require external ID” option and enter the Strike Graph External ID (also from Integrations Manager) under "External ID".

Click "Next" in the bottom right to advance to the next screen. This page will allow you to create an associated permissions policy.

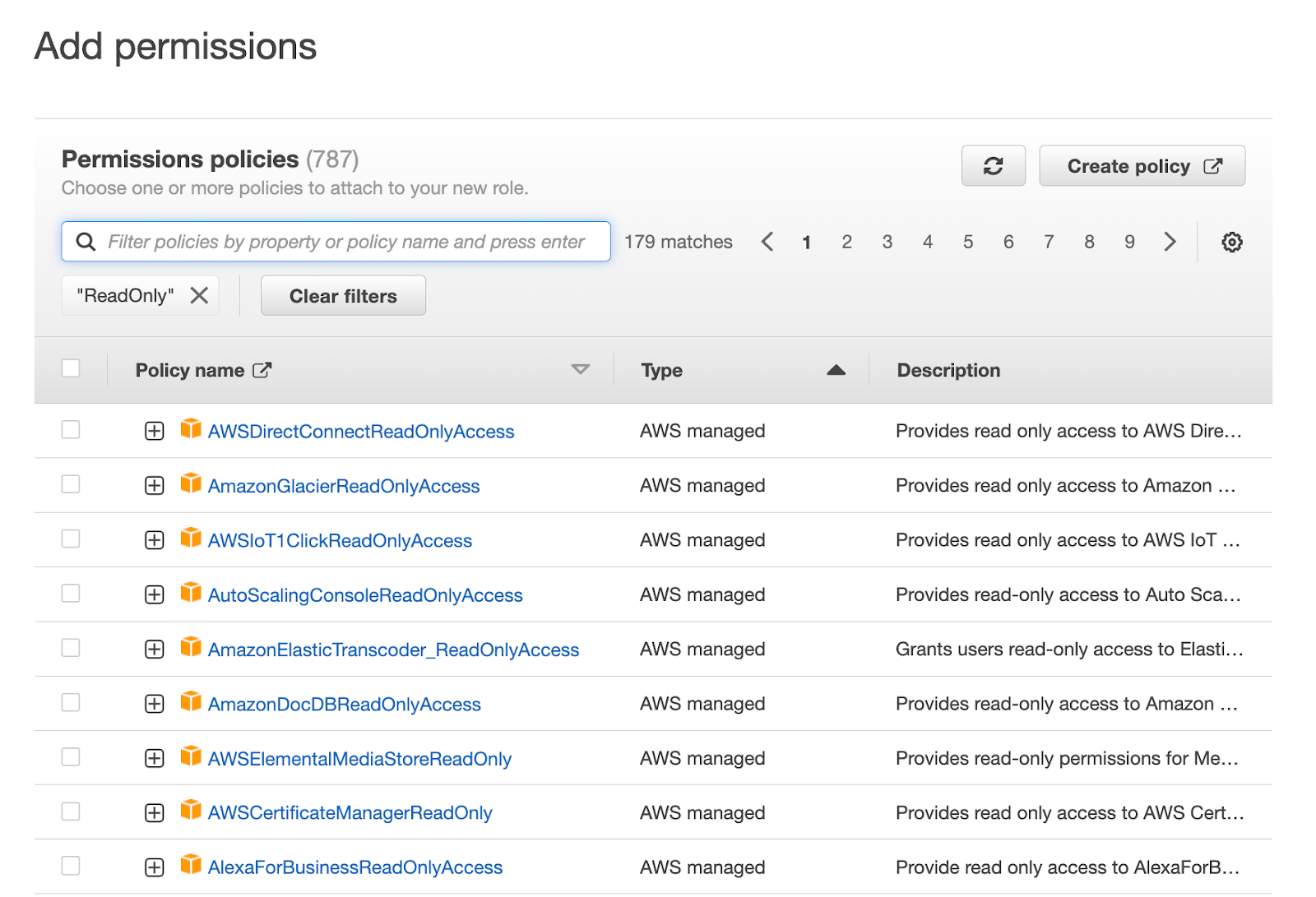

On the permissions page, you can either create your own custom policy, or select from the pre-defined AWS managed permission policies.

If you know ahead of time which systems you want to collect evidence from, you can add policies at this point, otherwise you can come back later and add new policies at a later date.

Remember: For proper security, only assign read-only permissions to this role, as that is all that is required for evidence collection.

Name, review, and create the role

On the final page, supply your new Role with a name and description (something like “Role for Strike Graph evidence collection” works) and then click the “Create role” button.

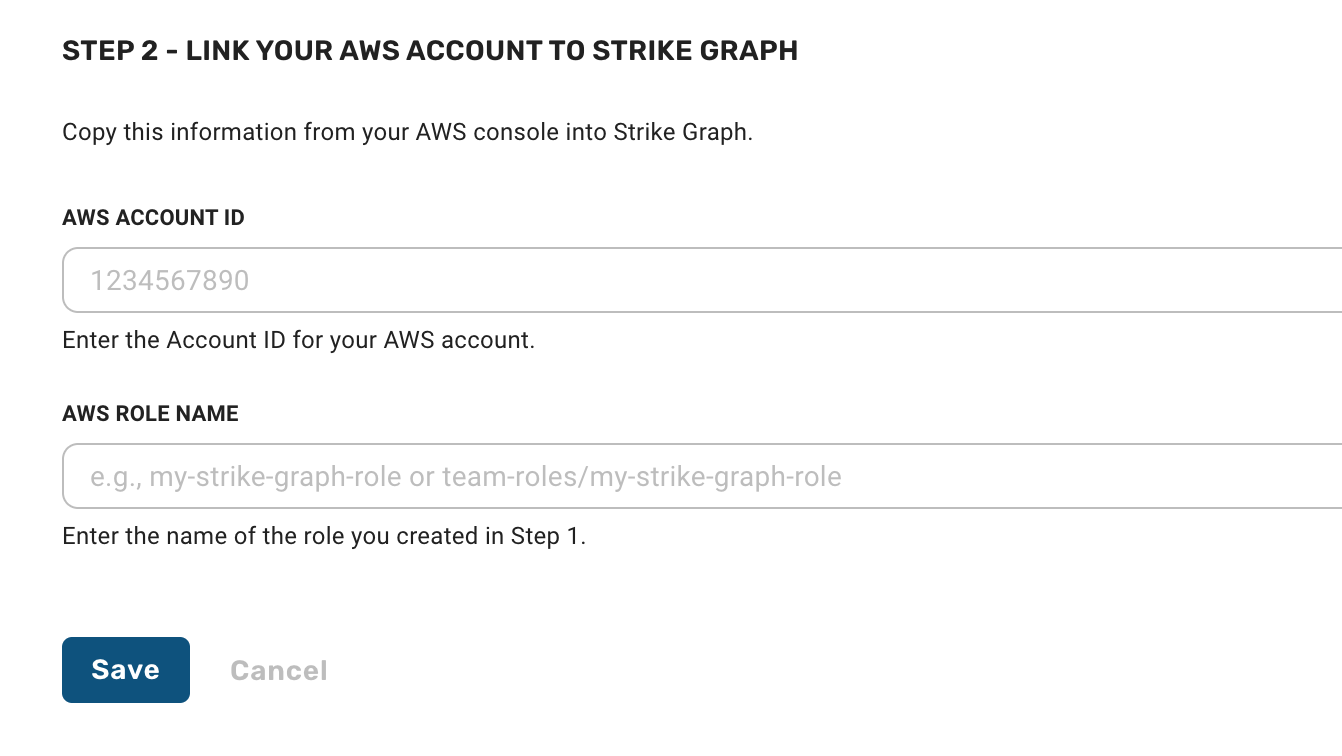

Back in the Strike Graph interface, enter your AWS Account ID and the name of the role that you just created and click the “Save” button to finalize the configuration of the integration.

Once you have configured a Terraform for AWS integration, you can begin using it to collect evidence of your infrastructure settings from your AWS systems.

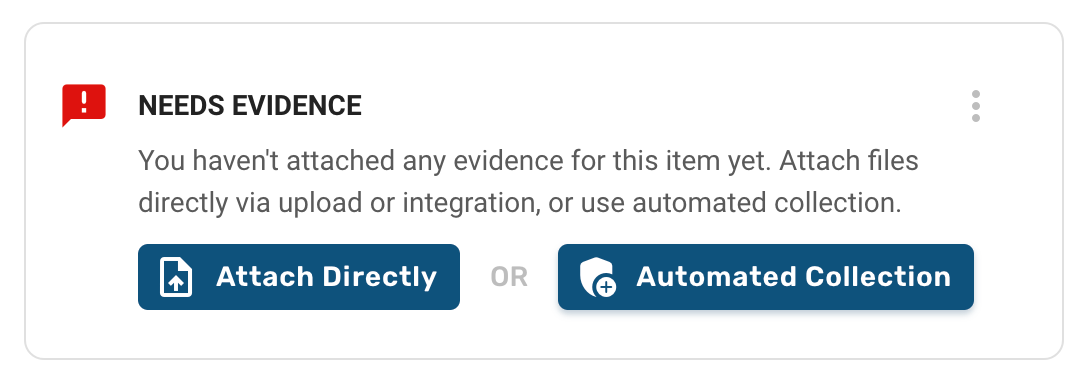

Start by navigating in Strike Graph to the item that you want to collect evidence for. You can choose to attach evidence directly for one time evidence collection, or configure automated collection (recommended).

Click on one of the options, and then select the Terraform for AWS integration from the list of available integrations. If you have configured multiple Terraform integrations, make sure you select the one with the right permissions for the evidence that you plan to collect.

Define the data to collect

Terraform integrations allow you to use a few lines of code to define what data you would like to collect as evidence. These are called “data blocks” and more information about data blocks and local values can be found on the Terraform overview page.

With Terraform for AWS, you can collect evidence from almost any AWS resource that you use in your cloud environments. There is a list of what data sources are available at the bottom of this page, as well as on the Terraform AWS provider page.

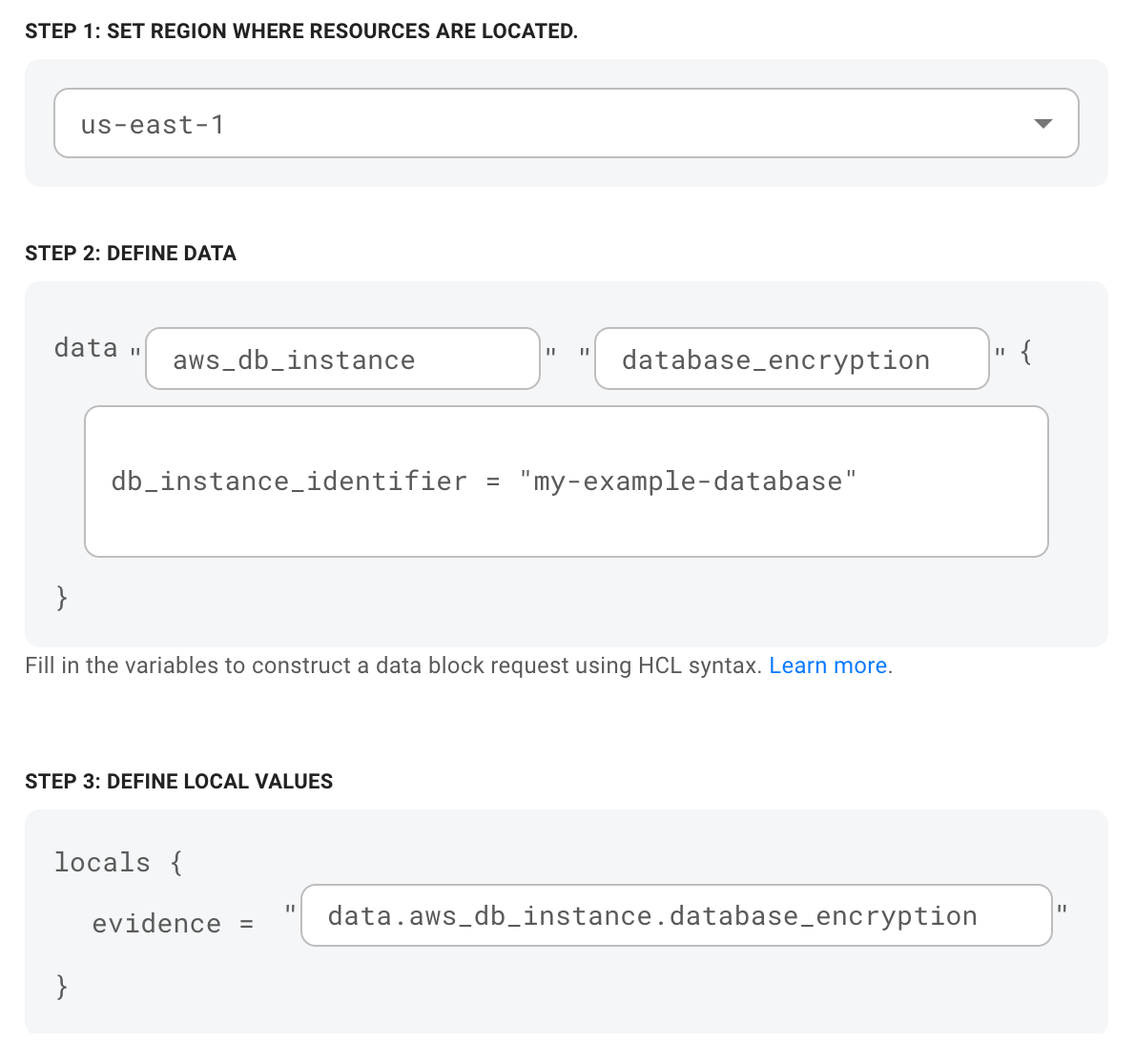

Step 1: Define which region the resource is in that you want to collect data from.

Step 2: Define the data block. Data blocks are very extensible, but follow a typical pattern:

Step 3: Define the local values used for the execution. This also follows a typical pattern that is derived from the data block: data.data_source.temp_name

After you have defined the data block and local values, click the "Attach" button to execute the data collection. This may take a few minutes as we set up the data pipeline to collect the attachment.

Once the collection is finished, the attachment modal will close and you can see the collected data has been added to the evidence. You can confirm what was collected by clicking on the attachment to view the data.

It is highly recommended that you configure your evidence collection with automated collection. With Automated Collection, Strike Graph can recollect evidence attachments from your AWS infrastructure a few days before expiration so that your evidence remains in an effective 'audit ready' state.

To configure your evidence with Automated Collection, follow the steps above after clicking on the "Automated Collection" button found on the evidence item detail pages. Additional information about Automated Collection is available here.

You can remove the integration at any time. Please note that removing an integration does not delete any files that were attached used during that integration. Removing an integration may also disrupt automated collection.

To remove:

Note: You may have access to remove integrations for other users on your team.

If you are fully removing access between Strike Graph and your AWS system, it's recommended that you also disable (or delete) the IAM role and policy that you set up during configuration from the AWS console.

For additional Terraform troubleshooting tips, click here.

Terraform integrations will return an error if we were unable to execute the collection request. The errors returned will be different depending on which step of the collection failed.

If the message returned is pretty generic (like "Something went wrong") it may be a formatting issue. Check that your temp_name is formatted correctly (no spaces, only alphanumeric characters) and that there are not any other unexpected characters or formatting issues in the data block or local values.

If it is a permissions error, ensure that you have given Strike Graph the necessary read-only permissions in the IAM role that you set up for the integration. It should include permission to read from the data_source that you defined in the data block.

Check that the resource you defined in the data_source is available from AWS Terraform provider, and ensure that you have included any required query constraints / attribute arguments.

Confirm that the local values is formatted correctly. Typically, the local value should start with "data" (as described above) and include the data_source and temp_name. Check that the data_source and temp_name values are the same between the data block and local values.

The following list is a snapshot of supported data sources from the AWS Terraform provider. For up to date support and specific data source requirements, visit the Terraform documentation.

ACM (Certificate Manager)

• aws_acm_certificate

ACM PCA (Certificate Manager Private Certificate Authority)

• aws_acmpca_certificate

• aws_acmpca_certificate_authority

API Gateway

• aws_api_gateway_api_key

• aws_api_gateway_domain_name

• aws_api_gateway_export

• aws_api_gateway_resource

• aws_api_gateway_rest_api

• aws_api_gateway_sdk

• aws_api_gateway_vpc_link

API Gateway V2

• aws_apigatewayv2_api

• aws_apigatewayv2_apis

• aws_apigatewayv2_export

App Mesh

• aws_appmesh_mesh

• aws_appmesh_virtual_service

Application Auto Scaling

• aws_autoscaling_group

• aws_autoscaling_groups

• aws_launch_configuration

Backup

• aws_backup_framework

• aws_backup_plan

• aws_backup_report_plan

• aws_backup_selection

• aws_backup_vault

Batch

• aws_batch_compute_environment

• aws_batch_job_queue

• aws_batch_scheduling_policy

CE (Cost Explorer)

• aws_ce_cost_category

• aws_ce_tags

Cloud Control API

• aws_cloudcontrolapi_resource

Cloud Map

• aws_service_discovery_dns_namespace

CloudFormation

• aws_cloudformation_export

• aws_cloudformation_stack

• aws_cloudformation_type

CloudFront

• aws_cloudfront_cache_policy

• aws_cloudfront_distribution

• aws_cloudfront_function

• aws_cloudfront_log_delivery_canonical_user_id

• aws_cloudfront_origin_access_identities

• aws_cloudfront_origin_access_identity

• aws_cloudfront_origin_request_policy

• aws_cloudfront_realtime_log_config

• aws_cloudfront_response_headers_policy

CloudHSM

• aws_cloudhsm_v2_cluster

CloudTrail

• aws_cloudtrail_service_account

CloudWatch Logs

• aws_cloudwatch_log_group

• aws_cloudwatch_log_groups

CodeArtifact

• aws_codeartifact_authorization_token

• aws_codeartifact_repository_endpoint

CodeCommit

• aws_codecommit_approval_rule_template

• aws_codecommit_repository

CodeStar Connections

• aws_codestarconnections_connection

Cognito IDP (Identity Provider)

• aws_cognito_user_pool_client

• aws_cognito_user_pool_clients

• aws_cognito_user_pool_signing_certificate

• aws_cognito_user_pools

Connect

• aws_connect_bot_association

• aws_connect_contact_flow

• aws_connect_contact_flow_module

• aws_connect_hours_of_operation

• aws_connect_instance

• aws_connect_lambda_function_association

• aws_connect_prompt

• aws_connect_queue

• aws_connect_quick_connect

• aws_connect_routing_profile

• aws_connect_security_profile

• aws_connect_user_hierarchy_structure

Cost and Usage Report

• aws_cur_report_definition

DS (Directory Service)

• aws_directory_service_directory

Data Pipeline

• aws_datapipeline_pipeline

• aws_datapipeline_pipeline_definition

Direct Connect

• aws_dx_connection

• aws_dx_gateway

• aws_dx_location

• aws_dx_locations

DocDB (DocumentDB)

• aws_docdb_engine_version

• aws_docdb_orderable_db_instance

DynamoDB

• aws_dynamodb_table

EBS (EC2)

• aws_ebs_default_kms_key

• aws_ebs_encryption_by_default

• aws_ebs_snapshot

• aws_ebs_snapshot_ids

• aws_ebs_volume

• aws_ebs_volumes

EC2 (Elastic Compute Cloud)

• aws_ami

• aws_ami_ids

• aws_availability_zone

• aws_availability_zones

• aws_ec2_host

• aws_ec2_instance_type

• aws_ec2_instance_type_offering

• aws_ec2_instance_type_offerings

• aws_ec2_instance_types

• aws_ec2_serial_console_access

• aws_ec2_spot_price

• aws_eip

• aws_eips

• aws_instance

• aws_instances

• aws_key_pair

• aws_launch_template

EC2 Image Builder

• aws_imagebuilder_component

• aws_imagebuilder_components

• aws_imagebuilder_container_recipe

• aws_imagebuilder_container_recipes

• aws_imagebuilder_distribution_configuration

• aws_imagebuilder_distribution_configurations

• aws_imagebuilder_image

• aws_imagebuilder_image_pipeline

• aws_imagebuilder_image_pipelines

• aws_imagebuilder_image_recipe

• aws_imagebuilder_image_recipes

• aws_imagebuilder_infrastructure_configuration

• aws_imagebuilder_infrastructure_configurations

ECR (Elastic Container Registry)

• aws_ecr_authorization_token

• aws_ecr_image

• aws_ecr_repository

ECR Public

• aws_ecrpublic_authorization_token

ECS (Elastic Container)

• aws_ecs_cluster

• aws_ecs_container_definition

• aws_ecs_service

• aws_ecs_task_definition

EFS (Elastic File System)

• aws_efs_access_point

• aws_efs_access_points

• aws_efs_file_system

• aws_efs_mount_target

EKS (Elastic Kubernetes)

• aws_eks_addon

• aws_eks_addon_version

• aws_eks_cluster

• aws_eks_cluster_auth

• aws_eks_clusters

• aws_eks_node_group

• aws_eks_node_groups

ELB (Elastic Load Balancing)

• aws_lb

• aws_lb_hosted_zone_id

• aws_lb_listener

• aws_lb_target_group

ELB Classic

• aws_elb

• aws_elb_hosted_zone_id

• aws_elb_service_account

EMR

• aws_emr_release_labels

EMR Containers

• aws_emrcontainers_virtual_cluster

ElastiCache

• aws_elasticache_cluster

• aws_elasticache_replication_group

• aws_elasticache_user

Elastic Beanstalk

• aws_elastic_beanstalk_application

• aws_elastic_beanstalk_hosted_zone

• aws_elastic_beanstalk_solution_stack

Elasticsearch

• aws_elasticsearch_domain

EventBridge

• aws_cloudwatch_event_bus

• aws_cloudwatch_event_connection

• aws_cloudwatch_event_source

Global Accelerator

• aws_globalaccelerator_accelerator

Glue

• aws_glue_connection

• aws_glue_data_catalog_encryption_settings

• aws_glue_script

GuardDuty

• aws_guardduty_detector

IAM (Identity & Access Management)

• aws_iam_account_alias

• aws_iam_group

• aws_iam_instance_profile

• aws_iam_instance_profiles

• aws_iam_openid_connect_provider

• aws_iam_policy

• aws_iam_policy_document

• aws_iam_role

• aws_iam_roles

• aws_iam_saml_provider

• aws_iam_server_certificate

• aws_iam_session_context

• aws_iam_user

• aws_iam_user_ssh_key

• aws_iam_users

Inspector

• aws_inspector_rules_packages

IoT Core

• aws_iot_endpoint

KMS (Key Management)

• aws_kms_alias

• aws_kms_ciphertext

• aws_kms_key

• aws_kms_public_key

• aws_kms_secret

• aws_kms_secrets

Kendra

• aws_kendra_faq

• aws_kendra_index

Kinesis

• aws_kinesis_stream

• aws_kinesis_stream_consumer

Kinesis Firehose

• aws_kinesis_firehose_delivery_stream

Lake Formation

• aws_lakeformation_data_lake_settings

• aws_lakeformation_permissions

• aws_lakeformation_resource

Lambda

• aws_lambda_alias

• aws_lambda_code_signing_config

• aws_lambda_function

• aws_lambda_function_url

• aws_lambda_invocation

• aws_lambda_layer_version

Lex Model Building

• aws_lex_bot

• aws_lex_bot_alias

• aws_lex_intent

• aws_lex_slot_type

Location

• aws_location_map

• aws_location_place_index

MQ

• aws_mq_broker

• aws_mq_broker_instance_type_offerings

Managed Grafana

• aws_grafana_workspace

Managed Streaming for Kafka

• aws_msk_broker_nodes

• aws_msk_cluster

• aws_msk_configuration

• aws_msk_kafka_version

Managed Streaming for Kafka Connect

• aws_mskconnect_connector

• aws_mskconnect_custom_plugin

• aws_mskconnect_worker_configuration

MemoryDB for Redis

• aws_memorydb_acl

• aws_memorydb_cluster

• aws_memorydb_parameter_group

• aws_memorydb_snapshot

• aws_memorydb_subnet_group

• aws_memorydb_user

Meta Data Sources

• aws_arn

• aws_billing_service_account

• aws_default_tags

• aws_ip_ranges

• aws_partition

• aws_region

• aws_regions

• aws_service

Neptune

• aws_neptune_engine_version

• aws_neptune_orderable_db_instance

Network Manager

• aws_networkmanager_connection

• aws_networkmanager_connections

• aws_networkmanager_core_network_policy_document

• aws_networkmanager_device

• aws_networkmanager_devices

• aws_networkmanager_global_network

• aws_networkmanager_global_networks

• aws_networkmanager_link

• aws_networkmanager_links

• aws_networkmanager_site

• aws_networkmanager_sites

OpenSearch

• aws_opensearch_domain

Organizations

• aws_organizations_delegated_administrators

• aws_organizations_delegated_services

• aws_organizations_organization

• aws_organizations_organizational_units

• aws_organizations_resource_tags

Outposts

• aws_outposts_asset

• aws_outposts_assets

• aws_outposts_outpost

• aws_outposts_outpost_instance_type

• aws_outposts_outpost_instance_types

• aws_outposts_outposts

• aws_outposts_site

• aws_outposts_sites

Outposts (EC2)

• aws_ec2_coip_pool

• aws_ec2_coip_pools

• aws_ec2_local_gateway

• aws_ec2_local_gateway_route_table

• aws_ec2_local_gateway_route_tables

• aws_ec2_local_gateway_virtual_interface

• aws_ec2_local_gateway_virtual_interface_group

• aws_ec2_local_gateway_virtual_interface_groups

• aws_ec2_local_gateways

Pricing Calculator

• aws_pricing_product

QLDB (Quantum Ledger Database)

• aws_qldb_ledger

RAM (Resource Access Manager)

• aws_ram_resource_share

RDS (Relational Database)

• aws_db_cluster_snapshot

• aws_db_event_categories

• aws_db_instance

• aws_db_proxy

• aws_db_snapshot

• aws_db_subnet_group

• aws_rds_certificate

• aws_rds_cluster

• aws_rds_engine_version

• aws_rds_orderable_db_instance

Redshift

• aws_redshift_cluster

• aws_redshift_cluster_credentials

• aws_redshift_orderable_cluster

• aws_redshift_service_account

• aws_redshift_subnet_group

Resource Groups Tagging

• aws_resourcegroupstaggingapi_resources

Route 53

• aws_route53_delegation_set

• aws_route53_traffic_policy_document

• aws_route53_zone

Route 53 Resolver

• aws_route53_resolver_endpoint

• aws_route53_resolver_rule

• aws_route53_resolver_rules

S3 (Simple Storage)

• aws_canonical_user_id

• aws_s3_bucket

• aws_s3_bucket_object

• aws_s3_bucket_objects

• aws_s3_bucket_policy

• aws_s3_object

• aws_s3_objects

SES (Simple Email)

• aws_ses_active_receipt_rule_set

• aws_ses_domain_identity

• aws_ses_email_identity

SFN (Step Functions)

• aws_sfn_activity

• aws_sfn_state_machine

SNS (Simple Notification)

• aws_sns_topic

SQS (Simple Queue)

• aws_sqs_queue

SSM (Systems Manager)

• aws_ssm_document

• aws_ssm_instances

• aws_ssm_maintenance_windows

• aws_ssm_parameter

• aws_ssm_parameters_by_path

• aws_ssm_patch_baseline

SSO Admin

• aws_ssoadmin_instances

• aws_ssoadmin_permission_set

SSO Identity Store

• aws_identitystore_group

• aws_identitystore_user

STS (Security Token)

• aws_caller_identity

SageMaker

• aws_sagemaker_prebuilt_ecr_image

Secrets Manager

• aws_secretsmanager_secret

• aws_secretsmanager_secret_rotation

• aws_secretsmanager_secret_version

• aws_secretsmanager_secrets

Serverless Application Repository

• aws_serverlessapplicationrepository_application

Service Catalog

• aws_servicecatalog_constraint

• aws_servicecatalog_launch_paths

• aws_servicecatalog_portfolio

• aws_servicecatalog_portfolio_constraints

• aws_servicecatalog_product

Service Quotas

• aws_servicequotas_service

• aws_servicequotas_service_quota

Signer

• aws_signer_signing_job

• aws_signer_signing_profile

Storage Gateway

• aws_storagegateway_local_disk

Transfer Family

• aws_transfer_server

Transit Gateway

• aws_ec2_transit_gateway

• aws_ec2_transit_gateway_connect

• aws_ec2_transit_gateway_connect_peer

• aws_ec2_transit_gateway_dx_gateway_attachment

• aws_ec2_transit_gateway_multicast_domain

• aws_ec2_transit_gateway_peering_attachment

• aws_ec2_transit_gateway_route_table

• aws_ec2_transit_gateway_route_tables

• aws_ec2_transit_gateway_vpc_attachment

• aws_ec2_transit_gateway_vpc_attachments

• aws_ec2_transit_gateway_vpn_attachment

VPC (Virtual Private Cloud)

• aws_ec2_managed_prefix_list

• aws_internet_gateway

• aws_nat_gateway

• aws_nat_gateways

• aws_network_acls

• aws_network_interface

• aws_network_interfaces

• aws_prefix_list

• aws_route

• aws_route_table

• aws_route_tables

• aws_security_group

• aws_security_groups

• aws_subnet

• aws_subnet_ids

• aws_subnets

• aws_vpc

• aws_vpc_dhcp_options

• aws_vpc_endpoint

• aws_vpc_endpoint_service

• aws_vpc_peering_connection

• aws_vpc_peering_connections

• aws_vpcs

VPC IPAM (IP Address Manager)

• aws_vpc_ipam_pool

• aws_vpc_ipam_preview_next_cidr

VPN (Client)

• aws_ec2_client_vpn_endpoint

VPN (Site-to-Site)

• aws_customer_gateway

• aws_vpn_gateway

WAF

• aws_wafv2_ip_set

• aws_wafv2_regex_pattern_set

• aws_wafv2_rule_group

• aws_wafv2_web_acl

WAF Classic

• aws_waf_ipset

• aws_waf_rate_based_rule

• aws_waf_rule

• aws_waf_web_acl

WAF Classic Regional

• aws_wafregional_ipset

• aws_wafregional_rate_based_rule

• aws_wafregional_rule

• aws_wafregional_web_acl

WorkSpaces

• aws_workspaces_bundle

• aws_workspaces_directory

• aws_workspaces_image

• aws_workspaces_workspace

Reach out through our chat feature for real-time Customer Success support 8 am - 5 pm PT Monday through Friday.
